BMS สำหรับ Lithium Iron Phosphate peak 70A

คำอธิบาย

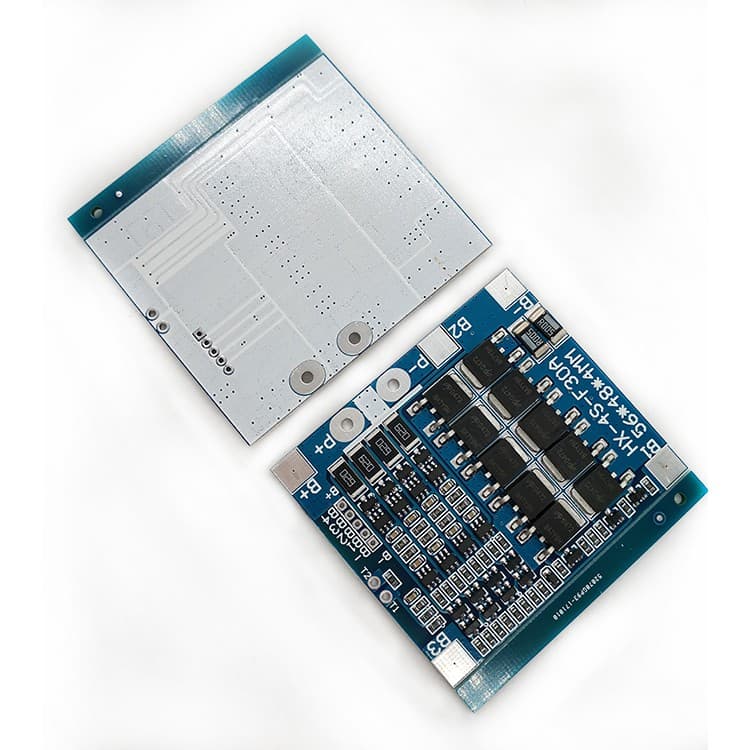

รายละเอียดทางเทคนิค: Continuous discharge current: 30A (MAX) Instantaneous discharge current: 70A Charging current: 15A Charging current: 30A (MAX) Overcharge detection voltage: 3.75 ± 0.05V Overcharge protection delay: 0.5S Overcharge release voltage: 3.6 ± 0.1V Electricity balance detection voltage: 3.60 ± 0.025V Power balance release voltage: 3.60 ± 0.05V Electric balance current: 48 ± 5mA Over discharge detection voltage: 2.1 ± 0.1V Over discharge detection delay: 0.1S Over discharge release voltage: 2.3 ± 0.1V Over current detection voltage: 150mV Over current detection delay: 9mS Over current protection current: 75 ± 5A Over current protection release condition: Disconnect the load Short circuit protection conditions: external load short circuit Short circuit detection delay: 250uS Release condition of short circuit protection : Disconnect negative open Main circuit conduction resistance: ≤ 15mΩ Working current: ≤ 30uA Sleep current (when the battery is over discharge): ≤ 10uA Temperature range: -30 / + 80 ℃ สินค้าประกอบด้วย: 1 x 4S 30A 12V Lithium Iron Phosphate Battery Protection Board 1 x 5P cable
